jx:if

jx:if conditionally includes or excludes a template area based on a boolean expression. Think of it as an if statement for your spreadsheet layout.

Syntax

jx:if(condition="e.Active" lastCell="C1")

Attributes

Attribute	Description	Required
condition	Boolean expression	Yes
lastCell	Bottom-right cell of the conditional area	Yes
ifArea	Area ref to render when true (advanced)	No
elseArea	Area ref to render when false (advanced)	No

Basic usage

When the condition is true, the area is rendered. When false, it’s omitted and subsequent rows shift up to fill the gap.

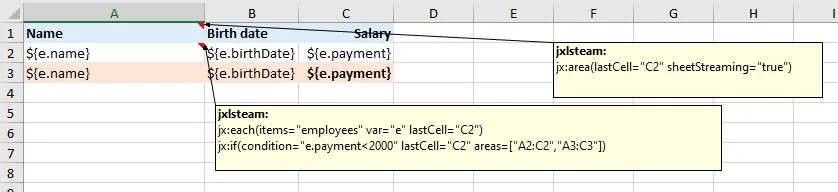

Template:

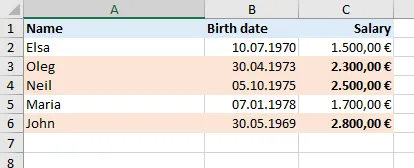

Output (condition true):

If without else

The most common pattern — show something only when a condition is met:

Template:

Output:

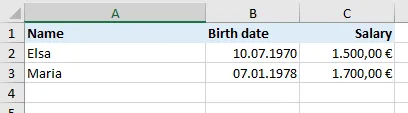

When the condition is false, the area simply disappears and rows below shift up.

Inside a loop

jx:if is powerful when combined with jx:each. Only show rows for items matching a condition:

Cell A1 comment:
  jx:area(lastCell="C2")
  jx:each(items="employees" var="e" lastCell="C2")

Cell A2 comment:
  jx:if(condition="e.Active" lastCell="C2")

Only active employees appear in the output.

Complex conditions

Any expression returning a boolean works:

jx:if(condition="e.Age >= 18 && e.Department == 'Engineering'" lastCell="C1")

jx:if(condition="len(items) > 0" lastCell="D5")

If/Else areas

For more advanced control, render different template regions depending on the condition:

jx:if(condition="hasData" ifArea="A2:C5" elseArea="A7:C8" lastCell="C8")

When hasData is true, the A2:C5 region is rendered. When false, A7:C8 is rendered instead. This lets you show a data table or a “no results” message from the same template.

Try it

Download the runnable example: template t07.xlsx | output 07_if_command.xlsx | code snippet

Next command

Need to fill a dynamic grid with headers and data rows?

jx:grid →
